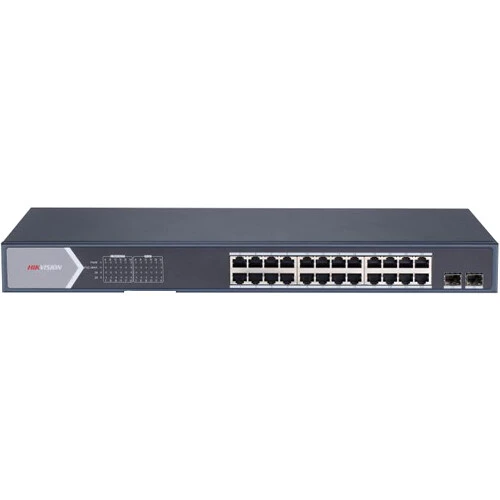

24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
PoE watchdog to auto detect and restart the cameras that do not respond.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
PoE Power Supply
PoE Standard : IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port : PoE: Ports 1 to 24
Max. Port : Power Port 1 to 24: 30 W
PoE Power Budget : 370 W
Network Parameters
Port Number : 24 × gigabit PoE port, and 2 × gigabit fiber optical port
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode : Store-and-forward switching
Working Mode
Standard mode (default)
Extend mode
MAC Address Table : 8 K
Switching Capacity : 52 Gbps
Packet Forwarding Rate : 36.688 Mpps
Internal Cache : 4.1 Mbits
Software Function
Device Maintenance : Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Configuration : Port rate configuration, flow control, and ports enabling
Long Range : Up to 300 m transmission
PoE Configuration
PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond.
PoE enabling: Support
Port Rate-Limiting : Rate-limiting for ingress and egress ports
Storm Control : Storm control of unknown unicast, multicast and broadcast
Port Mirroring : Support
Link Aggregation : Static link aggregation supported
Port Isolation : Ports in isolation group cannot communicate with each other.
QoS : WRR and SP scheduling and port priority
VLAN : 4094 VLANs
STP : STP and RSTP protocols
SNMP : SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
LLDP : LLDP protocol supported for port configuration, global configuration and neighbor discovery
General
Shell Metal : material
Net Weight : 2.975 kg (6.56 lb)
Gross Weight : 3.535 kg (7.79 lb)
Dimension (W × H × D) : 440 mm × 221 mm × 44 mm (17.32” × 8.7” × 1.73”)
Operating Temperature : -10°C to 55°C (14°F to 131°F)
Storage Temperature : -40°C to 85°C (-40°F to 185°F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Max. Power Consumption : 400 W
Power Consumption in Idle : 30 W
